ZyXEL XGS1010-12 B1

Under Construction!
This page is currently under construction. You can edit the article to help completing it.

Since this is a unmanaged switch, ZyXEL does not distrubute or make avalible firmware for it. Make sure to have your own backups

ZyXEL XGS1010-12 is a unmanaged 12-port switch. Identical to the XGS1210-12, with the exception that it comes with unmanaged firmware, has no reset button, and features a slightly different U-Boot. Ports: 8 10/100/1000BaseT Ethernet ports 2 10/100/1000/2500BaseT Ethernet ports 2 SFP+ 1/10GBit cages

Generic Router

OpenWrt support

Flashing the XGS1210-12 firmware for the device just works for now with the exepiton of SFP+ cages

Hardware highlights

CPU Ram Flash Network WLAN USB Serial JTag
EXAMPLE RT3052 @ 384 MHz 128 MiB 16 MiB 8x 10/100/1000 2x/10/100/1000/2500 2x/1000/10000 SFP+ Yes ?

Hardware

Info

Architecture EXAMPLE MIPS
Vendor EXAMPLE Ralink
Bootloader EXAMPLE U-Boot
System-On-Chip EXAMPLE Ralink RT3052 - MIPS 24K V4.12
CPU/Speed EXAMPLE 451 MHz
Flash-Chip EXAMPLE unkown
Flash size EXAMPLE 8 MiB
RAM EXAMPLE 64 MiB
Wireless EXAMPLE RT2860v2 2.4GHz 802.11bgn
Ethernet EXAMPLE 10/100 Mbit/s w/ vlan support
Switch EXAMPLE Qualcomm Atheros QCA8337
USB EXAMPLE 1x 2.0
Serial EXAMPLE Yes
JTAG EXAMPLE Not populated

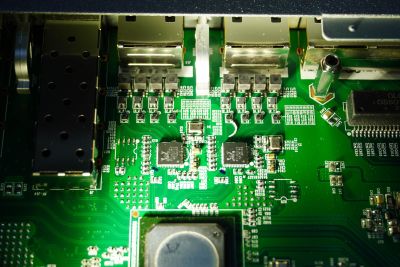

Photos

Opening the case

There are three phillips head screws on the back of the device, once they are removed, the top cover can simply be slid off. This reveals the heatsink, which can also be removed by unscrewing three phillips head screws and gently applying a bit of pulling force to release the thermal pads.

Just a gentle reminder that you don’t need a full teardown to access the serial interface, but you will need to remove the top cover and the heatsink to access the SPI flash. There is not much interesting things in the backside of the motherboard. But the picture will be uploaded here

Serial

→ port.serial general information about the serial port, serial port cable, etc.

Serial very simple on this switch. On the right side, between the ventilation slits. The serial header can be connected to without the need for a teardown with a standard 2.54mm header. Pins are, from top to bottom:

  • Vcc (3.3V)
  • TX
  • RX
  • GND

Layout is exactly the same as for the ZyXEL XGS1250-12 or the XGS1210-12

Serial connection parameters for ZyXEL xgs1010-12 115200, 8N1

JTAG

→ port.jtag general information about the JTAG port, JTAG cable, etc.

How to connect to the JTAG Port of this specific device:
Insert photo of PCB with markings for JTAG port

Bootlogs

OEM bootlog

U-Boot 2011.12.(3.6.10.55184) (Jun 30 2023 - 15:45:13) Board: RTL9300 CPU:800MHz LX:175MHz DDR:600MHz DRAM: 128 MB SPI-F: MXIC/C22018/MMIO16-1/ModeC 1x16 MB (plr_flash_info @ 83f9d474) Loading 65536B env. variables from offset 0xe0000 *** Warning - bad CRC, using default environment Net: Net Initialization Skipped No ethernet found. Hit Esc key to stop autoboot: 0 ## Booting image from partition ... 0 ## Booting kernel from Legacy Image at 81000000 ... Image Name: RTK_SDK Created: 2023-07-20 10:50:10 UTC Image Type: MIPS Linux Kernel Image (lzma compressed) Data Size: 5043867 Bytes = 4.8 MB Load Address: 80000000 Entry Point: 80283850 Verifying Checksum ... OK Uncompressing Kernel Image ... OK Starting kernel ... console [ttyS0] enabled bootconsole [early0] disabled Calibrating delay loop... 531.66 BogoMIPS (lpj=2658304) pid_max: default: 32768 minimum: 301 Mount-cache hash table entries: 1024 (order: 0, 4096 bytes) Mountpoint-cache hash table entries: 1024 (order: 0, 4096 bytes) NET: Registered protocol family 16 SCSI subsystem initialized usbcore: registered new interface driver usbfs usbcore: registered new interface driver hub usbcore: registered new device driver usb NET: Registered protocol family 2 TCP established hash table entries: 1024 (order: 0, 4096 bytes) TCP bind hash table entries: 1024 (order: 2, 20480 bytes) TCP: Hash tables configured (established 1024 bind 1024) TCP: reno registered UDP hash table entries: 256 (order: 1, 12288 bytes) UDP-Lite hash table entries: 256 (order: 1, 12288 bytes) NET: Registered protocol family 1 futex hash table entries: 256 (order: 0, 7168 bytes) msgmni has been set to 238 random: modprobe urandom read with 1 bits of entropy available io scheduler noop registered io scheduler deadline registered io scheduler cfq registered (default) Serial: 8250/16550 driver, 1 ports, IRQ sharing disabled serial8250: ttyS0 at MMIO 0x0 (irq = 47, base_baud = 10764700) is a 16550A RTK_SPI_FLASH_MIO driver is bypassed RTK_NORSFG3 driver is used ================================================================= init_luna_nor_spi_map: flash map at 0xb4000000 SPI NOR driver probe... MXIC/C22018/MMIO16-1/ModeC add SPI NOR partition MTD partitions obtained from built-in array Creating 7 MTD partitions on "rtk_norsf_g3": 0x000000000000-0x0000000e0000 : "LOADER" 0x0000000e0000-0x0000000f0000 : "BDINFO" 0x0000000f0000-0x000000100000 : "SYSINFO" 0x000000100000-0x000000200000 : "JFFS2 CFG" 0x000000200000-0x000000300000 : "JFFS2 LOG" 0x000000300000-0x000000980000 : "RUNTIME" 0x000000980000-0x000001000000 : "RUNTIME2" ================================================================= ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver rtk_gen1_hcd_cs_init: rtk_gen1_hcd_cs_init()! rtk_gen1_hcd_cs_init: register rtk_gen1_ehci ok! usb_phy_configure_process: usb_phy_configure_process()! rtk_gen1-ehci rtk_gen1-ehci: Realtek On-Chip EHCI Host Controller rtk_gen1-ehci rtk_gen1-ehci: new USB bus registered, assigned bus number 1 rtk_gen1-ehci rtk_gen1-ehci: irq 28, io mem 0x18021000 rtk_gen1-ehci rtk_gen1-ehci: USB 2.0 started, EHCI 1.00 hub 1-0:1.0: USB hub found hub 1-0:1.0: 1 port detected usbcore: registered new interface driver usbtmc usbcore: registered new interface driver usb-storage TCP: cubic registered NET: Registered protocol family 17 Freeing unused kernel memory: 3828K (803a3000 - 80760000) init started: BusyBox v1.00 (2023.03.29-02:57+0000) multi-call binary Starting pid 25, console : '/etc/rc' RTCORE LKM Insert... RTCORE Driver Module Initialize IOAL init Log init Hardware-profile probe (Forced profile: RTL9302B_8218D_2x8226B_2XGE) (RTL9302B_8218D_2x8226B_2XGE) Hardware-profile init GPIO probe (unit 0): (found) GPIO Init Reset PHY gpio OK! SPI init (unit 0) (type3) SPI Master init Intr Probe (unit 0) TC probe (unit 0): (found) TC init (unit 0) TC util init (unit 0) TC util init (isr) Watchdog probe (unit 0): (found) Watchdog init (unit 0) I2C probe (unit 0) I2C init (unit 0) RTL8231 probe (unit 0): (found) RTL8231 init (unit 0) NIC probe (unit 0) IOAL init L2Ntfy probe (unit 0): (found) RTK Driver Module Initialize MAC probe (unit 0) Chip 9302 (found) MAC init (unit 0) SMI protocol probe (unit 0) PHY probe (unit 0) Chip Construct (unit 0) Chip Construct Disable PHY Polling PHY Reset MAC Construct Turn Off Serdes Serdes Construct PHY Construct Turn On Serdes Mac_Polling_PHY Config Enable PHY Polling Misc PHY init (unit 0) Mgmt_dev init (unit 0) I2C device init (unit 0) I2C device init (unit 0) RTNIC Driver Module Initialize RTDRV Driver Module Initialize route: not found RTK.0>


OpenWrt bootlog

[Jun 19, 2026, 2:20:13 PM UTC] kern.notice: [ 0.000000] Linux version 6.18.35 (redacted@redacted) (mips-openwrt-linux-musl-gcc (OpenWrt GCC 14.3.0 r34868+19-12abb2413a) 14.3.0, GNU ld (GNU Binutils) 2.44) #0 SMP Fri Jun 19 14:19:00 2026 [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.000000] Realtek RTL9302B rev B (6487) SoC with 128 MB [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.000000] printk: legacy bootconsole [early0] enabled [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.000000] CPU0 revision is: 00019555 (MIPS 34Kc) [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.000000] MIPS: machine is Zyxel XGS1010-12 B1 [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.000000] earlycon: ns16550a0 at MMIO 0x18002000 (options '115200n8') [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.000000] printk: legacy bootconsole [ns16550a0] enabled [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.000000] Initrd not found or empty - disabling initrd [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.000000] Using appended Device Tree. [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.000000] OF: reserved mem: Reserved memory: No reserved-memory node in the DT [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.000000] Detected 1 available secondary CPU(s) [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.000000] Primary instruction cache 32kB, VIPT, 4-way, linesize 32 bytes. [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.000000] Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.000000] Zone ranges: [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.000000] Normal [mem 0x0000000000000000-0x0000000007ffffff] [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.000000] HighMem empty [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.000000] Movable zone start for each node [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.000000] Early memory node ranges [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.000000] node 0: [mem 0x0000000000000000-0x0000000007ffffff] [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.000000] Initmem setup node 0 [mem 0x0000000000000000-0x0000000007ffffff] [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.000000] percpu: Embedded 12 pages/cpu s18384 r8192 d22576 u49152 [Jun 19, 2026, 2:20:13 PM UTC] kern.debug: [ 0.000000] pcpu-alloc: s18384 r8192 d22576 u49152 alloc=12*4096 [Jun 19, 2026, 2:20:13 PM UTC] kern.debug: [ 0.000000] pcpu-alloc: [0] 0 [0] 1 [Jun 19, 2026, 2:20:13 PM UTC] kern.notice: [ 0.000000] Kernel command line: earlycon [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.000000] printk: log buffer data + meta data: 131072 + 409600 = 540672 bytes [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.000000] Dentry cache hash table entries: 16384 (order: 4, 65536 bytes, linear) [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.000000] Inode-cache hash table entries: 8192 (order: 3, 32768 bytes, linear) [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.000000] Writing ErrCtl register=00011470 [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.000000] Readback ErrCtl register=00011470 [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.000000] Built 1 zonelists, mobility grouping on. Total pages: 32768 [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.000000] mem auto-init: stack:off, heap alloc:off, heap free:off [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.000000] SLUB: HWalign=32, Order=0-3, MinObjects=0, CPUs=2, Nodes=1 [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.000000] rcu: Hierarchical RCU implementation. [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.000000] Tracing variant of Tasks RCU enabled. [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.000000] rcu: RCU calculated value of scheduler-enlistment delay is 10 jiffies. [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.000000] RCU Tasks Trace: Setting shift to 1 and lim to 1 rcu_task_cb_adjust=1 rcu_task_cpu_ids=2. [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.000000] NR_IRQS: 256 [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.000000] rcu: srcu_init: Setting srcu_struct sizes based on contention. [Jun 19, 2026, 2:20:13 PM UTC] kern.err: [ 0.000000] Failed to get CPU clock: -2 [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.000000] CPU frequency from device tree: 800MHz [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.000000] clocksource: realtek_otto_timer: mask: 0xfffffff max_cycles: 0xfffffff, max_idle_ns: 38225208801 ns [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.000002] sched_clock: 28 bits at 3125kHz, resolution 320ns, wraps every 42949672800ns [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.009136] Calibrating delay loop... 531.66 BogoMIPS (lpj=2658304) [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.065728] pid_max: default: 32768 minimum: 301 [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.082359] Mount-cache hash table entries: 1024 (order: 0, 4096 bytes, linear) [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.090398] Mountpoint-cache hash table entries: 1024 (order: 0, 4096 bytes, linear) [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.119374] rcu: Hierarchical SRCU implementation. [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.124624] rcu: Max phase no-delay instances is 1000. [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.132269] smp: Bringing up secondary CPUs ... [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.139094] Primary instruction cache 32kB, VIPT, 4-way, linesize 32 bytes. [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.139143] Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.139326] CPU1 revision is: 00019555 (MIPS 34Kc) [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.218921] Counter synchronization [CPU#0 -> CPU#1]: passed [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.246144] smp: Brought up 1 node, 2 CPUs [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.252055] Memory: 117700K/131072K available (7901K kernel code, 659K rwdata, 992K rodata, 1256K init, 239K bss, 12492K reserved, 0K cma-reserved, 0K highmem) [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.273520] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.284745] posixtimers hash table entries: 1024 (order: 1, 8192 bytes, linear) [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.292902] futex hash table entries: 512 (16384 bytes on 1 NUMA nodes, total 16 KiB, linear). [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.309298] pinctrl core: initialized pinctrl subsystem [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.318462] NET: Registered PF_NETLINK/PF_ROUTE protocol family [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.325848] thermal_sys: Registered thermal governor 'step_wise' [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.354760] clocksource: Switched to clocksource realtek_otto_timer [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.379899] NET: Registered PF_INET protocol family [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.385611] IP idents hash table entries: 2048 (order: 2, 16384 bytes, linear) [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.394551] tcp_listen_portaddr_hash hash table entries: 512 (order: 0, 4096 bytes, linear) [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.403796] Table-perturb hash table entries: 65536 (order: 6, 262144 bytes, linear) [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.412354] TCP established hash table entries: 1024 (order: 0, 4096 bytes, linear) [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.420825] TCP bind hash table entries: 1024 (order: 2, 16384 bytes, linear) [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.428748] TCP: Hash tables configured (established 1024 bind 1024) [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.436400] MPTCP token hash table entries: 256 (order: 0, 4096 bytes, linear) [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.444885] UDP hash table entries: 256 (order: 2, 14336 bytes, linear) [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.452242] UDP-Lite hash table entries: 256 (order: 2, 14336 bytes, linear) [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.461339] NET: Registered PF_UNIX/PF_LOCAL protocol family [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.470101] workingset: timestamp_bits=14 max_order=15 bucket_order=1 [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.481219] squashfs: version 4.0 (2009/01/31) Phillip Lougher [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.487711] jffs2: version 2.2 (NAND) (SUMMARY) (ZLIB) (LZMA) (RTIME) (CMODE_PRIORITY) (c) 2001-2006 Red Hat, Inc. [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.508835] pinctrl-single 1b000200.pinmux: 32 pins, size 4 [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.515814] pinctrl-single 1b000204.pinmux: 32 pins, size 4 [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.522567] pinctrl-single 1b00c600.pinmux: 32 pins, size 4 [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.529232] pinctrl-single 1b00cc00.pinmux: 32 pins, size 4 [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.540461] Serial: 8250/16550 driver, 2 ports, IRQ sharing disabled [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.550810] printk: legacy console [ttyS0] disabled [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.557051] 18002000.uart: ttyS0 at MMIO 0x18002000 (irq = 30, base_baud = 10937500) is a 16550A [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.566795] printk: legacy console [ttyS0] enabled [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.577538] printk: legacy bootconsole [early0] disabled [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.591146] printk: legacy bootconsole [ns16550a0] disabled [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.638469] brd: module loaded [Jun 19, 2026, 2:20:13 PM UTC] kern.notice: [ 0.647326] 10 fixed-partitions partitions found on MTD device spi0.0 [Jun 19, 2026, 2:20:13 PM UTC] kern.notice: [ 0.654574] Creating 10 MTD partitions on "spi0.0": [Jun 19, 2026, 2:20:13 PM UTC] kern.notice: [ 0.660115] 0x000000000000-0x0000000e0000 : "u-boot" [Jun 19, 2026, 2:20:13 PM UTC] kern.notice: [ 0.666680] 0x0000000e0000-0x0000000f0000 : "u-boot-env" [Jun 19, 2026, 2:20:13 PM UTC] kern.notice: [ 0.673547] 0x0000000f0000-0x000000100000 : "u-boot-env2" [Jun 19, 2026, 2:20:13 PM UTC] kern.notice: [ 0.682240] 0x000000100000-0x000000200000 : "jffs2-cfg" [Jun 19, 2026, 2:20:13 PM UTC] kern.notice: [ 0.689051] 0x000000200000-0x000000300000 : "jffs2-log" [Jun 19, 2026, 2:20:13 PM UTC] kern.notice: [ 0.697053] 0x000000300000-0x000000810000 : "fwconcat1" [Jun 19, 2026, 2:20:13 PM UTC] kern.notice: [ 0.705091] 0x000000810000-0x000000820000 : "htp-log" [Jun 19, 2026, 2:20:13 PM UTC] kern.notice: [ 0.712782] 0x000000820000-0x0000008f0000 : "fwconcat2" [Jun 19, 2026, 2:20:13 PM UTC] kern.notice: [ 0.720762] 0x0000008f0000-0x000000900000 : "htp-flash-test" [Jun 19, 2026, 2:20:13 PM UTC] kern.notice: [ 0.729117] 0x000000900000-0x000001000000 : "fwconcat0" [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.818008] realtek-otto-serdes-mdio 1b000000.ethernet-switch:mdio-serdes: Realtek SerDes mdio bus initialized, 12 SerDes, 64 pages, 32 registers [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.833437] realtek-otto-pcs 1b000000.ethernet-switch:pcs: Realtek PCS driver initialized [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.843508] Probing RTL838X eth device pdev: 81909e00, dev: 81909e10 [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.851162] rtl838x_eth 1b000000.ethernet-switch:ethernet: Using MAC 00:e0:4c:00:00:00 [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.861681] i2c_dev: i2c /dev entries driver [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.876400] NET: Registered PF_INET6 protocol family [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.887032] Segment Routing with IPv6 [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.891304] In-situ OAM (IOAM) with IPv6 [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.896028] NET: Registered PF_PACKET protocol family [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 0.902351] 8021q: 802.1Q VLAN Support v1.8 [Jun 19, 2026, 2:20:13 PM UTC] kern.notice: [ 0.956532] Concatenating MTD devices: [Jun 19, 2026, 2:20:13 PM UTC] kern.notice: [ 0.960760] (0): "fwconcat0" [Jun 19, 2026, 2:20:13 PM UTC] kern.notice: [ 0.963982] (1): "fwconcat1" [Jun 19, 2026, 2:20:13 PM UTC] kern.notice: [ 0.967349] (2): "fwconcat2" [Jun 19, 2026, 2:20:13 PM UTC] kern.notice: [ 0.970574] into device "virtual_flash" [Jun 19, 2026, 2:20:13 PM UTC] kern.notice: [ 0.975011] 1 fixed-partitions partitions found on MTD device virtual_flash [Jun 19, 2026, 2:20:13 PM UTC] kern.notice: [ 0.983158] Creating 1 MTD partitions on "virtual_flash": [Jun 19, 2026, 2:20:13 PM UTC] kern.notice: [ 0.989318] 0x000000000000-0x000000ce0000 : "firmware" [Jun 19, 2026, 2:20:13 PM UTC] kern.notice: [ 0.997541] 2 uimage-fw partitions found on MTD device firmware [Jun 19, 2026, 2:20:13 PM UTC] kern.notice: [ 1.004163] Creating 2 MTD partitions on "firmware": [Jun 19, 2026, 2:20:13 PM UTC] kern.notice: [ 1.009888] 0x000000000000-0x0000002d0000 : "kernel" [Jun 19, 2026, 2:20:13 PM UTC] kern.notice: [ 1.017299] 0x0000002d0000-0x000000ce0000 : "rootfs" [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 1.024597] mtd: setting mtd12 (rootfs) as root device [Jun 19, 2026, 2:20:13 PM UTC] kern.notice: [ 1.030566] 1 squashfs-split partitions found on MTD device rootfs [Jun 19, 2026, 2:20:13 PM UTC] kern.notice: [ 1.037578] 0x000000580000-0x000000ce0000 : "rootfs_data" [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 1.048863] sfp sfp-p11: Host maximum power 1.0W [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 1.059523] sfp sfp-p12: Host maximum power 1.0W [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 1.070958] rtldsa_93xx_setup called [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 1.075149] In rtldsa_vlan_setup [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 1.366238] sfp sfp-p11: module OEM SFP-10G-T rev yc sn SNF20240102054 dc 240102 [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 1.406344] hwmon hwmon3: temp1_input not attached to any thermal zone [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 2.114878] rtldsa_enable_phy_polling: f0000ff [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 2.121073] rtl83xx-switch 1b000000.ethernet-switch: led_set0 has 2 LEDs configured [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 2.129673] rtl83xx-switch 1b000000.ethernet-switch: led_set1 has 4 LEDs configured [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 2.138270] rtl83xx-switch 1b000000.ethernet-switch: led_set2 has 2 LEDs configured [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 2.147045] rtl83xx-switch 1b000000.ethernet-switch: configuring for fixed/internal link mode [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 2.157027] rtl83xx-switch 1b000000.ethernet-switch: Link is Up - 1Gbps/Full - flow control off [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 2.167517] RTL8218D (chip_id=1, rev_id=1) on port 0 running in XSGMII mode [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 2.181871] rtl83xx-switch 1b000000.ethernet-switch lan1 (uninitialized): PHY [realtek-mdio-0:00] driver [REALTEK RTL8218D] (irq=POLL) [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 2.198627] rtl83xx-switch 1b000000.ethernet-switch lan2 (uninitialized): PHY [realtek-mdio-0:01] driver [REALTEK RTL8218D] (irq=POLL) [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 2.215461] rtl83xx-switch 1b000000.ethernet-switch lan3 (uninitialized): PHY [realtek-mdio-0:02] driver [REALTEK RTL8218D] (irq=POLL) [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 2.232317] rtl83xx-switch 1b000000.ethernet-switch lan4 (uninitialized): PHY [realtek-mdio-0:03] driver [REALTEK RTL8218D] (irq=POLL) [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 2.248918] rtl83xx-switch 1b000000.ethernet-switch lan5 (uninitialized): PHY [realtek-mdio-0:04] driver [REALTEK RTL8218D] (irq=POLL) [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 2.265626] rtl83xx-switch 1b000000.ethernet-switch lan6 (uninitialized): PHY [realtek-mdio-0:05] driver [REALTEK RTL8218D] (irq=POLL) [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 2.282351] rtl83xx-switch 1b000000.ethernet-switch lan7 (uninitialized): PHY [realtek-mdio-0:06] driver [REALTEK RTL8218D] (irq=POLL) [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 2.299087] rtl83xx-switch 1b000000.ethernet-switch lan8 (uninitialized): PHY [realtek-mdio-0:07] driver [REALTEK RTL8218D] (irq=POLL) [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 2.355327] rtl83xx-switch 1b000000.ethernet-switch lan9 (uninitialized): PHY [realtek-mdio-1:01] driver [RTL8221B-VB-CG 2.5Gbps PHY] (irq=POLL) [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 2.415056] rtl83xx-switch 1b000000.ethernet-switch lan10 (uninitialized): PHY [realtek-mdio-2:02] driver [RTL8221B-VB-CG 2.5Gbps PHY] (irq=POLL) [Jun 19, 2026, 2:20:13 PM UTC] kern.err: [ 2.435587] rtl838x_eth 1b000000.ethernet-switch:ethernet eth0: Failed to create a device link to DSA switch 1b000000.ethernet-switch [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 2.449201] rtl838x_eth 1b000000.ethernet-switch:ethernet eth0: entered promiscuous mode [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 2.458489] DSA: tree 0 setup [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 2.461888] LINK state irq: 23 [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 2.465537] rtl930x_dbgfs_init called [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 2.470845] clk: Disabling unused clocks [Jun 19, 2026, 2:20:13 PM UTC] kern.warn: [ 2.475920] check access for rdinit=/init failed: -2, ignoring [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 2.490317] VFS: Mounted root (squashfs filesystem) readonly on device 31:12. [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 2.503791] Freeing unused kernel image (initmem) memory: 1256K [Jun 19, 2026, 2:20:13 PM UTC] kern.warn: [ 2.510465] This architecture does not have kernel memory protection. [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 2.517788] Run /sbin/init as init process [Jun 19, 2026, 2:20:13 PM UTC] kern.debug: [ 2.522365] with arguments: [Jun 19, 2026, 2:20:13 PM UTC] kern.debug: [ 2.525725] /sbin/init [Jun 19, 2026, 2:20:13 PM UTC] kern.debug: [ 2.528754] with environment: [Jun 19, 2026, 2:20:13 PM UTC] kern.debug: [ 2.532238] HOME=/ [Jun 19, 2026, 2:20:13 PM UTC] kern.debug: [ 2.534959] TERM=linux [Jun 19, 2026, 2:20:13 PM UTC] user.info: [ 3.422226] init: Console is alive [Jun 19, 2026, 2:20:13 PM UTC] user.info: [ 3.426622] init: - watchdog - [Jun 19, 2026, 2:20:13 PM UTC] user.info: [ 3.861126] kmodloader: loading kernel modules from /etc/modules-boot.d/* [Jun 19, 2026, 2:20:13 PM UTC] kern.warn: [ 3.878468] gpio_button_hotplug: loading out-of-tree module taints kernel. [Jun 19, 2026, 2:20:13 PM UTC] user.info: [ 3.888598] kmodloader: done loading kernel modules from /etc/modules-boot.d/* [Jun 19, 2026, 2:20:13 PM UTC] user.info: [ 3.905639] init: - preinit - [Jun 19, 2026, 2:20:13 PM UTC] kern.notice: [ 7.044852] random: crng init done [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 8.672561] RESETTING CPU_PORT 28 [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 8.885250] rtl838x_eth 1b000000.ethernet-switch:ethernet eth0: receive page pool below 41 MB [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 8.894854] rtl838x_eth 1b000000.ethernet-switch:ethernet eth0: configuring for fixed/internal link mode [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 8.905478] In rteth_mac_config, mode 1 [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 8.910592] rtl83xx-switch 1b000000.ethernet-switch lan1: configuring for phy/usxgmii link mode [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 8.920386] realtek-otto-pcs 1b000000.ethernet-switch:pcs: configure SerDes 2 for mode usxgmii [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 8.930170] rtl838x_eth 1b000000.ethernet-switch:ethernet eth0: Link is Up - 1Gbps/Full - flow control off [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 9.201427] vthp_set_bin = 3, vthn_set_bin = 3, manual = 0 [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 9.308866] tap0: coef_bin = 23, sign = + [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 9.313352] tap0: manual = 0 [Jun 19, 2026, 2:20:13 PM UTC] kern.info: [ 9.388523] 8021q: adding VLAN 0 to HW filter on device lan1 [Jun 19, 2026, 2:20:13 PM UTC] kern.notice: [ 13.924461] jffs2: notice: (760) jffs2_build_xattr_subsystem: complete building xattr subsystem, 7 of xdatum (0 unchecked, 1 orphan) and 8 of xref (1 dead, 0 orphan) found. [Jun 19, 2026, 2:20:13 PM UTC] user.info: [ 13.943972] mount_root: switching to jffs2 overlay [Jun 19, 2026, 2:20:13 PM UTC] kern.warn: [ 13.955256] overlayfs: upper fs does not support tmpfile. [Jun 19, 2026, 2:20:13 PM UTC] user.warn: [ 13.972236] urandom-seed: Seeding with /etc/urandom.seed [Jun 19, 2026, 2:20:13 PM UTC] user.info: [ 14.195991] procd: - early - [Jun 19, 2026, 2:20:13 PM UTC] user.info: [ 14.199569] procd: - watchdog - [Jun 19, 2026, 2:20:13 PM UTC] user.info: [ 14.883782] procd: - watchdog - [Jun 19, 2026, 2:20:13 PM UTC] user.info: [ 14.888685] procd: - ubus - [Jun 19, 2026, 2:20:13 PM UTC] user.info: [ 14.999930] procd: - init - [Jun 19, 2026, 2:20:13 PM UTC] user.info: [ 16.071004] kmodloader: loading kernel modules from /etc/modules.d/* [Jun 19, 2026, 2:20:13 PM UTC] user.info: [ 16.232990] kmodloader: done loading kernel modules from /etc/modules.d/* [Jun 19, 2026, 2:20:14 PM UTC] user.info: [ 18.944186] urngd: v1.0.2 started. [Jun 19, 2026, 2:20:16 PM UTC] authpriv.info: dropbear[1272]: Not backgrounding [Jun 19, 2026, 2:20:20 PM UTC] user.notice: : Added device handler type: vrf [Jun 19, 2026, 2:20:20 PM UTC] user.notice: : Added device handler type: bonding [Jun 19, 2026, 2:20:20 PM UTC] user.notice: : Added device handler type: 8021ad [Jun 19, 2026, 2:20:20 PM UTC] user.notice: : Added device handler type: 8021q [Jun 19, 2026, 2:20:20 PM UTC] user.notice: : Added device handler type: macvlan [Jun 19, 2026, 2:20:20 PM UTC] user.notice: : Added device handler type: veth [Jun 19, 2026, 2:20:20 PM UTC] user.notice: : Added device handler type: bridge [Jun 19, 2026, 2:20:20 PM UTC] user.notice: : Added device handler type: Network device [Jun 19, 2026, 2:20:20 PM UTC] user.notice: : Added device handler type: tunnel [Jun 19, 2026, 2:20:20 PM UTC] daemon.warn: netifd: Wireless module not found [Jun 19, 2026, 2:20:21 PM UTC] kern.info: [ 25.788216] in rteth_stop [Jun 19, 2026, 2:20:21 PM UTC] kern.info: [ 25.791408] rtl838x_eth 1b000000.ethernet-switch:ethernet eth0: Link is Down [Jun 19, 2026, 2:20:22 PM UTC] kern.info: [ 26.458824] Using MAC 00:e0:4c:df:2f:a5 [Jun 19, 2026, 2:20:22 PM UTC] kern.info: [ 26.463476] RESETTING CPU_PORT 28 [Jun 19, 2026, 2:20:22 PM UTC] kern.info: [ 26.685309] rtl838x_eth 1b000000.ethernet-switch:ethernet eth0: receive page pool below 41 MB [Jun 19, 2026, 2:20:22 PM UTC] kern.info: [ 26.694933] rtl838x_eth 1b000000.ethernet-switch:ethernet eth0: configuring for fixed/internal link mode [Jun 19, 2026, 2:20:22 PM UTC] kern.info: [ 26.705645] In rteth_mac_config, mode 1 [Jun 19, 2026, 2:20:22 PM UTC] kern.info: [ 26.710321] rtl838x_eth 1b000000.ethernet-switch:ethernet eth0: Link is Up - 1Gbps/Full - flow control off [Jun 19, 2026, 2:20:22 PM UTC] kern.info: [ 26.739042] rtl83xx-switch 1b000000.ethernet-switch lan1: configuring for phy/usxgmii link mode [Jun 19, 2026, 2:20:22 PM UTC] kern.info: [ 26.783785] 8021q: adding VLAN 0 to HW filter on device lan1 [Jun 19, 2026, 2:20:22 PM UTC] kern.info: [ 26.808775] switch: port 1(lan1) entered blocking state [Jun 19, 2026, 2:20:22 PM UTC] kern.info: [ 26.814644] switch: port 1(lan1) entered disabled state [Jun 19, 2026, 2:20:22 PM UTC] kern.info: [ 26.820672] rtl83xx-switch 1b000000.ethernet-switch lan1: entered allmulticast mode [Jun 19, 2026, 2:20:22 PM UTC] kern.info: [ 26.829378] rtl838x_eth 1b000000.ethernet-switch:ethernet eth0: entered allmulticast mode [Jun 19, 2026, 2:20:22 PM UTC] kern.info: [ 26.839416] rtl83xx-switch 1b000000.ethernet-switch lan1: entered promiscuous mode [Jun 19, 2026, 2:20:22 PM UTC] daemon.notice: netifd: Interface 'lan' is enabled [Jun 19, 2026, 2:20:22 PM UTC] daemon.notice: netifd: Interface 'lan' is setting up now [Jun 19, 2026, 2:20:22 PM UTC] daemon.notice: netifd: Interface 'lan' is now up [Jun 19, 2026, 2:20:22 PM UTC] kern.info: [ 27.131866] rtl83xx-switch 1b000000.ethernet-switch lan2: configuring for phy/usxgmii link mode [Jun 19, 2026, 2:20:22 PM UTC] kern.info: [ 27.175376] 8021q: adding VLAN 0 to HW filter on device lan2 [Jun 19, 2026, 2:20:22 PM UTC] kern.info: [ 27.218765] switch: port 2(lan2) entered blocking state [Jun 19, 2026, 2:20:22 PM UTC] kern.info: [ 27.224636] switch: port 2(lan2) entered disabled state [Jun 19, 2026, 2:20:22 PM UTC] kern.info: [ 27.230804] rtl83xx-switch 1b000000.ethernet-switch lan2: entered allmulticast mode [Jun 19, 2026, 2:20:23 PM UTC] kern.info: [ 27.285975] rtl83xx-switch 1b000000.ethernet-switch lan2: entered promiscuous mode [Jun 19, 2026, 2:20:23 PM UTC] kern.info: [ 27.334909] rtl83xx-switch 1b000000.ethernet-switch lan3: configuring for phy/usxgmii link mode [Jun 19, 2026, 2:20:23 PM UTC] kern.info: [ 27.358425] 8021q: adding VLAN 0 to HW filter on device lan3 [Jun 19, 2026, 2:20:23 PM UTC] kern.info: [ 27.382763] switch: port 3(lan3) entered blocking state [Jun 19, 2026, 2:20:23 PM UTC] kern.info: [ 27.388830] switch: port 3(lan3) entered disabled state [Jun 19, 2026, 2:20:23 PM UTC] kern.info: [ 27.394913] rtl83xx-switch 1b000000.ethernet-switch lan3: entered allmulticast mode [Jun 19, 2026, 2:20:23 PM UTC] kern.info: [ 27.407684] rtl83xx-switch 1b000000.ethernet-switch lan3: entered promiscuous mode [Jun 19, 2026, 2:20:23 PM UTC] kern.info: [ 27.474555] rtl83xx-switch 1b000000.ethernet-switch lan4: configuring for phy/usxgmii link mode [Jun 19, 2026, 2:20:23 PM UTC] kern.info: [ 27.486547] 8021q: adding VLAN 0 to HW filter on device lan4 [Jun 19, 2026, 2:20:23 PM UTC] kern.info: [ 27.504939] switch: port 4(lan4) entered blocking state [Jun 19, 2026, 2:20:23 PM UTC] kern.info: [ 27.510814] switch: port 4(lan4) entered disabled state [Jun 19, 2026, 2:20:23 PM UTC] kern.info: [ 27.516856] rtl83xx-switch 1b000000.ethernet-switch lan4: entered allmulticast mode [Jun 19, 2026, 2:20:23 PM UTC] kern.info: [ 27.526640] rtl83xx-switch 1b000000.ethernet-switch lan4: entered promiscuous mode [Jun 19, 2026, 2:20:23 PM UTC] kern.info: [ 27.552472] rtl83xx-switch 1b000000.ethernet-switch lan5: configuring for phy/usxgmii link mode [Jun 19, 2026, 2:20:23 PM UTC] kern.info: [ 27.564916] 8021q: adding VLAN 0 to HW filter on device lan5 [Jun 19, 2026, 2:20:23 PM UTC] kern.info: [ 27.615745] switch: port 5(lan5) entered blocking state [Jun 19, 2026, 2:20:23 PM UTC] kern.info: [ 27.621646] switch: port 5(lan5) entered disabled state [Jun 19, 2026, 2:20:23 PM UTC] kern.info: [ 27.627796] rtl83xx-switch 1b000000.ethernet-switch lan5: entered allmulticast mode [Jun 19, 2026, 2:20:23 PM UTC] kern.info: [ 27.655411] rtl83xx-switch 1b000000.ethernet-switch lan5: entered promiscuous mode [Jun 19, 2026, 2:20:23 PM UTC] kern.info: [ 27.697892] rtl83xx-switch 1b000000.ethernet-switch lan6: configuring for phy/usxgmii link mode [Jun 19, 2026, 2:20:23 PM UTC] kern.info: [ 27.710216] 8021q: adding VLAN 0 to HW filter on device lan6 [Jun 19, 2026, 2:20:23 PM UTC] kern.info: [ 27.729221] switch: port 6(lan6) entered blocking state [Jun 19, 2026, 2:20:23 PM UTC] kern.info: [ 27.735281] switch: port 6(lan6) entered disabled state [Jun 19, 2026, 2:20:23 PM UTC] kern.info: [ 27.741241] rtl83xx-switch 1b000000.ethernet-switch lan6: entered allmulticast mode [Jun 19, 2026, 2:20:23 PM UTC] kern.info: [ 27.750906] rtl83xx-switch 1b000000.ethernet-switch lan6: entered promiscuous mode [Jun 19, 2026, 2:20:23 PM UTC] kern.info: [ 27.785140] rtl83xx-switch 1b000000.ethernet-switch lan7: configuring for phy/usxgmii link mode [Jun 19, 2026, 2:20:23 PM UTC] kern.info: [ 27.797470] 8021q: adding VLAN 0 to HW filter on device lan7 [Jun 19, 2026, 2:20:23 PM UTC] kern.info: [ 27.814101] switch: port 7(lan7) entered blocking state [Jun 19, 2026, 2:20:23 PM UTC] kern.info: [ 27.820163] switch: port 7(lan7) entered disabled state [Jun 19, 2026, 2:20:23 PM UTC] kern.info: [ 27.826255] rtl83xx-switch 1b000000.ethernet-switch lan7: entered allmulticast mode [Jun 19, 2026, 2:20:23 PM UTC] kern.info: [ 27.835896] rtl83xx-switch 1b000000.ethernet-switch lan7: entered promiscuous mode [Jun 19, 2026, 2:20:23 PM UTC] kern.info: [ 27.860588] rtl83xx-switch 1b000000.ethernet-switch lan8: configuring for phy/usxgmii link mode [Jun 19, 2026, 2:20:23 PM UTC] kern.info: [ 27.871062] 8021q: adding VLAN 0 to HW filter on device lan8 [Jun 19, 2026, 2:20:23 PM UTC] kern.info: [ 27.891288] switch: port 8(lan8) entered blocking state [Jun 19, 2026, 2:20:23 PM UTC] kern.info: [ 27.897437] switch: port 8(lan8) entered disabled state [Jun 19, 2026, 2:20:23 PM UTC] kern.info: [ 27.903384] rtl83xx-switch 1b000000.ethernet-switch lan8: entered allmulticast mode [Jun 19, 2026, 2:20:23 PM UTC] kern.info: [ 27.912995] rtl83xx-switch 1b000000.ethernet-switch lan8: entered promiscuous mode [Jun 19, 2026, 2:20:23 PM UTC] kern.info: [ 27.939041] rtl83xx-switch 1b000000.ethernet-switch lan9: configuring for inband/sgmii link mode [Jun 19, 2026, 2:20:23 PM UTC] kern.info: [ 27.949009] realtek-otto-pcs 1b000000.ethernet-switch:pcs: configure SerDes 6 for mode sgmii [Jun 19, 2026, 2:20:23 PM UTC] kern.info: [ 27.976162] rtpcs_93xx_sds_config_cmu: SDS 6 using ring PLL for mode 5 [Jun 19, 2026, 2:20:23 PM UTC] user.notice: ucitrack: Setting up /etc/config/luci-splash reload dependency on /etc/config/firewall [Jun 19, 2026, 2:20:23 PM UTC] kern.warn: [ 28.046416] rtpcs_930x_sds_10g_idle: WARNING Waiting for RX idle timed out, SDS 6 [Jun 19, 2026, 2:20:23 PM UTC] user.notice: ucitrack: Setting up /etc/config/qos reload dependency on /etc/config/firewall [Jun 19, 2026, 2:20:23 PM UTC] user.notice: ucitrack: Setting up /etc/config/miniupnpd reload dependency on /etc/config/firewall [Jun 19, 2026, 2:20:23 PM UTC] user.notice: firewall: Reloading firewall due to ifup of lan (switch.1) [Jun 19, 2026, 2:20:24 PM UTC] user.notice: ucitrack: Setting up /etc/config/odhcpd reload dependency on /etc/config/dhcp [Jun 19, 2026, 2:20:24 PM UTC] kern.info: [ 28.339131] vthp_set_bin = 7, vthn_set_bin = 3, manual = 0 [Jun 19, 2026, 2:20:24 PM UTC] kern.info: [ 28.468088] tap0: coef_bin = 31, sign = + [Jun 19, 2026, 2:20:24 PM UTC] kern.info: [ 28.472630] tap0: manual = 0 [Jun 19, 2026, 2:20:24 PM UTC] kern.info: [ 28.607139] 8021q: adding VLAN 0 to HW filter on device lan9 [Jun 19, 2026, 2:20:24 PM UTC] kern.info: [ 28.635662] switch: port 9(lan9) entered blocking state [Jun 19, 2026, 2:20:24 PM UTC] kern.info: [ 28.641575] switch: port 9(lan9) entered disabled state [Jun 19, 2026, 2:20:24 PM UTC] kern.info: [ 28.647720] rtl83xx-switch 1b000000.ethernet-switch lan9: entered allmulticast mode [Jun 19, 2026, 2:20:24 PM UTC] kern.info: [ 28.657512] rtl83xx-switch 1b000000.ethernet-switch lan9: entered promiscuous mode [Jun 19, 2026, 2:20:24 PM UTC] kern.info: [ 28.718767] rtl83xx-switch 1b000000.ethernet-switch lan10: configuring for inband/sgmii link mode [Jun 19, 2026, 2:20:24 PM UTC] kern.info: [ 28.728876] realtek-otto-pcs 1b000000.ethernet-switch:pcs: configure SerDes 7 for mode sgmii [Jun 19, 2026, 2:20:24 PM UTC] kern.info: [ 28.765092] rtpcs_93xx_sds_config_cmu: SDS 7 using ring PLL for mode 5 [Jun 19, 2026, 2:20:24 PM UTC] user.notice: ucitrack: Setting up /etc/config/dhcp reload dependency on /etc/config/network [Jun 19, 2026, 2:20:24 PM UTC] kern.warn: [ 28.838103] rtpcs_930x_sds_10g_idle: WARNING Waiting for RX idle timed out, SDS 7 [Jun 19, 2026, 2:20:24 PM UTC] user.notice: ucitrack: Setting up /etc/config/network reload dependency on /etc/config/wireless [Jun 19, 2026, 2:20:24 PM UTC] kern.info: [ 29.129192] vthp_set_bin = 7, vthn_set_bin = 3, manual = 0 [Jun 19, 2026, 2:20:25 PM UTC] kern.info: [ 29.255401] tap0: coef_bin = 31, sign = + [Jun 19, 2026, 2:20:25 PM UTC] kern.info: [ 29.260052] tap0: manual = 0 [Jun 19, 2026, 2:20:25 PM UTC] kern.info: [ 29.385442] 8021q: adding VLAN 0 to HW filter on device lan10 [Jun 19, 2026, 2:20:25 PM UTC] kern.info: [ 29.402817] switch: port 10(lan10) entered blocking state [Jun 19, 2026, 2:20:25 PM UTC] kern.info: [ 29.409037] switch: port 10(lan10) entered disabled state [Jun 19, 2026, 2:20:25 PM UTC] kern.info: [ 29.415355] rtl83xx-switch 1b000000.ethernet-switch lan10: entered allmulticast mode [Jun 19, 2026, 2:20:25 PM UTC] kern.info: [ 29.425048] rtl83xx-switch 1b000000.ethernet-switch lan10: entered promiscuous mode [Jun 19, 2026, 2:20:25 PM UTC] kern.info: [ 29.466709] rtl83xx-switch 1b000000.ethernet-switch lan11: configuring for inband/1000base-x link mode [Jun 19, 2026, 2:20:25 PM UTC] kern.info: [ 29.477222] realtek-otto-pcs 1b000000.ethernet-switch:pcs: configure SerDes 8 for mode 1000base-x [Jun 19, 2026, 2:20:25 PM UTC] kern.info: [ 29.505243] rtpcs_93xx_sds_config_cmu: SDS 8 using ring PLL for mode 2 [Jun 19, 2026, 2:20:25 PM UTC] user.notice: ucitrack: Setting up non-init /etc/config/fstab reload handler: /sbin/block mount [Jun 19, 2026, 2:20:25 PM UTC] kern.warn: [ 29.581318] rtpcs_930x_sds_10g_idle: WARNING Waiting for RX idle timed out, SDS 8 [Jun 19, 2026, 2:20:25 PM UTC] user.notice: ucitrack: Setting up /etc/config/system reload trigger for non-procd /etc/init.d/led [Jun 19, 2026, 2:20:25 PM UTC] kern.info: [ 29.869395] vthp_set_bin = 7, vthn_set_bin = 3, manual = 0 [Jun 19, 2026, 2:20:25 PM UTC] user.notice: ucitrack: Setting up /etc/config/luci_statistics reload dependency on /etc/config/system [Jun 19, 2026, 2:20:25 PM UTC] user.notice: ucitrack: Setting up /etc/config/dhcp reload dependency on /etc/config/system [Jun 19, 2026, 2:20:25 PM UTC] kern.info: [ 29.996754] tap0: coef_bin = 31, sign = + [Jun 19, 2026, 2:20:25 PM UTC] kern.info: [ 30.001314] tap0: manual = 0 [Jun 19, 2026, 2:20:25 PM UTC] kern.info: [ 30.090453] 8021q: adding VLAN 0 to HW filter on device lan11 [Jun 19, 2026, 2:20:25 PM UTC] kern.info: [ 30.098219] switch: port 11(lan11) entered blocking state [Jun 19, 2026, 2:20:25 PM UTC] kern.info: [ 30.104303] switch: port 11(lan11) entered disabled state [Jun 19, 2026, 2:20:25 PM UTC] kern.info: [ 30.110600] rtl83xx-switch 1b000000.ethernet-switch lan11: entered allmulticast mode [Jun 19, 2026, 2:20:25 PM UTC] kern.info: [ 30.120392] rtl83xx-switch 1b000000.ethernet-switch lan11: entered promiscuous mode [Jun 19, 2026, 2:20:25 PM UTC] kern.info: [ 30.142873] rtl83xx-switch 1b000000.ethernet-switch lan12: configuring for inband/1000base-x link mode [Jun 19, 2026, 2:20:25 PM UTC] kern.info: [ 30.153480] realtek-otto-pcs 1b000000.ethernet-switch:pcs: configure SerDes 9 for mode 1000base-x [Jun 19, 2026, 2:20:25 PM UTC] kern.info: [ 30.185094] rtpcs_93xx_sds_config_cmu: SDS 9 using ring PLL for mode 2 [Jun 19, 2026, 2:20:26 PM UTC] kern.warn: [ 30.251563] rtpcs_930x_sds_10g_idle: WARNING Waiting for RX idle timed out, SDS 9 [Jun 19, 2026, 2:20:26 PM UTC] kern.info: [ 30.538356] vthp_set_bin = 7, vthn_set_bin = 3, manual = 0 [Jun 19, 2026, 2:20:26 PM UTC] kern.info: [ 30.666145] tap0: coef_bin = 31, sign = + [Jun 19, 2026, 2:20:26 PM UTC] kern.info: [ 30.670698] tap0: manual = 0 [Jun 19, 2026, 2:20:26 PM UTC] kern.info: [ 30.758667] 8021q: adding VLAN 0 to HW filter on device lan12 [Jun 19, 2026, 2:20:26 PM UTC] kern.info: [ 30.921153] rtl83xx-switch 1b000000.ethernet-switch lan7: Link is Up - 1Gbps/Full - flow control off [Jun 19, 2026, 2:20:27 PM UTC] kern.info: [ 31.947151] hwmon hwmon4: temp1_input not attached to any thermal zone [Jun 19, 2026, 2:20:29 PM UTC] kern.info: [ 33.247197] rtl83xx-switch 1b000000.ethernet-switch lan11: PHY [smbus:sfp-p11:11] driver [Aquantia AQR113C] (irq=POLL) [Jun 19, 2026, 2:20:29 PM UTC] kern.info: [ 33.286734] rtl83xx-switch 1b000000.ethernet-switch lan11: switched to inband/10gbase-r link mode [Jun 19, 2026, 2:20:29 PM UTC] kern.info: [ 33.296754] realtek-otto-pcs 1b000000.ethernet-switch:pcs: configure SerDes 8 for mode 10gbase-r [Jun 19, 2026, 2:20:29 PM UTC] kern.info: [ 33.325122] rtpcs_93xx_sds_config_cmu: SDS 8 using LC PLL for mode 4 [Jun 19, 2026, 2:20:29 PM UTC] kern.warn: [ 33.469861] rtpcs_930x_sds_10g_idle: WARNING Waiting for RX idle timed out, SDS 8 [Jun 19, 2026, 2:20:29 PM UTC] kern.info: [ 33.709911] vthp_set_bin = 7, vthn_set_bin = 7, manual = 0 [Jun 19, 2026, 2:20:29 PM UTC] kern.info: [ 33.819113] tap0: coef_bin = 31, sign = + [Jun 19, 2026, 2:20:29 PM UTC] kern.info: [ 33.823604] tap0: manual = 0 [Jun 19, 2026, 2:20:29 PM UTC] kern.info: [ 34.151175] vthp_set_bin = 7, vthn_set_bin = 7, manual = 0 [Jun 19, 2026, 2:20:30 PM UTC] kern.info: [ 34.258750] tap0: coef_bin = 31, sign = + [Jun 19, 2026, 2:20:30 PM UTC] kern.info: [ 34.263242] tap0: manual = 0 [Jun 19, 2026, 2:20:30 PM UTC] kern.info: [ 34.457020] switch: port 12(lan12) entered blocking state [Jun 19, 2026, 2:20:30 PM UTC] kern.info: [ 34.463063] switch: port 12(lan12) entered disabled state [Jun 19, 2026, 2:20:30 PM UTC] kern.info: [ 34.469248] rtl83xx-switch 1b000000.ethernet-switch lan12: entered allmulticast mode [Jun 19, 2026, 2:20:30 PM UTC] kern.info: [ 34.478791] rtl83xx-switch 1b000000.ethernet-switch lan12: entered promiscuous mode [Jun 19, 2026, 2:20:30 PM UTC] kern.info: [ 34.488442] switch: port 7(lan7) entered blocking state [Jun 19, 2026, 2:20:30 PM UTC] kern.info: [ 34.494292] switch: port 7(lan7) entered forwarding state [Jun 19, 2026, 2:20:30 PM UTC] daemon.notice: netifd: bridge 'switch' link is up [Jun 19, 2026, 2:20:30 PM UTC] daemon.notice: netifd: VLAN 'switch.1' link is up [Jun 19, 2026, 2:20:30 PM UTC] daemon.notice: netifd: Interface 'lan' has link connectivity [Jun 19, 2026, 2:20:30 PM UTC] daemon.notice: netifd: Interface 'loopback' is enabled [Jun 19, 2026, 2:20:30 PM UTC] daemon.notice: netifd: Interface 'loopback' is setting up now [Jun 19, 2026, 2:20:30 PM UTC] daemon.notice: netifd: Interface 'loopback' is now up [Jun 19, 2026, 2:20:30 PM UTC] daemon.notice: netifd: bridge 'switch' link is down [Jun 19, 2026, 2:20:30 PM UTC] daemon.notice: netifd: Network device 'eth0' link is up [Jun 19, 2026, 2:20:30 PM UTC] daemon.notice: netifd: VLAN 'switch.1' link is down [Jun 19, 2026, 2:20:30 PM UTC] daemon.notice: netifd: Interface 'lan' has link connectivity loss [Jun 19, 2026, 2:20:30 PM UTC] daemon.notice: netifd: Network device 'lo' link is up [Jun 19, 2026, 2:20:30 PM UTC] daemon.notice: netifd: Interface 'loopback' has link connectivity [Jun 19, 2026, 2:20:30 PM UTC] daemon.notice: netifd: Network device 'lan7' link is up [Jun 19, 2026, 2:20:30 PM UTC] daemon.notice: netifd: bridge 'switch' link is up [Jun 19, 2026, 2:20:30 PM UTC] daemon.notice: netifd: VLAN 'switch.1' link is up [Jun 19, 2026, 2:20:30 PM UTC] daemon.notice: netifd: Interface 'lan' has link connectivity [Jun 19, 2026, 2:20:31 PM UTC] daemon.info: procd: - init complete -


Notes
