Techdata: Linksys MR9000
Usage
- IMPORTANT : Edit this page only via the LEFT edit button below the dataentry box
- After editing, please enter a short summary of your edit:
- Which field has been changed? (e.g. Ethernet 100M ports)
- What have you done? (e.g. added / updated / deleted / ...)
- Why has it been changed? / What is your datasource? (acc. devicepage / wikidevi / forum ...)
- Example summary: Ethernet 100M ports updated according wikidevi
- For adding new dropdown values, Contact an OpenWrt wiki admin (tmomas)
- For conventions / allowed values, see below
- For general usage help, see Dataentry template background
- Searching for pure technical facts? See table below.
- Searching for installation instructions, bootlogs, other info? See link to Device Page below.
Dataentry
- Device Type:
- WiFi Router
- Brand:
- Linksys
- Model:
- MR9000
- FCCID:
- https://fcc.report/FCC-ID/Q87-03433
- Availability:
- Available 2026
- Where available:
- amazon.com
- Supported Since Commit:
- https://git.openwrt.org/?p=openwrt/openwrt.git;a=commit;h=9f7d9aa16711ee655f6faaa7b2f4f23dc5c4ab4e
- Supported Current Rel:
- snapshot
- Unsupported Functions:
- Bluetooth
- Gluon support:
- unknown
- Target:
- ipq40xx
- Subtarget:
- generic
- Package architecture:
- arm_cortex-a7_neon-vfpv4
- Bootloader:
- U-Boot
- CPU:
- Qualcomm Atheros IPQ4019
- CPU Cores:
- 4
- CPU MHz:
- 717
- Flash MB:
- 256
- RAM MB:
- 512
- Ethernet 100M ports:
- -
- Ethernet 1Gbit ports:
- 5
- Ethernet 2.5Gbit ports:
- -
- Ethernet 5Gbit ports:
- -
- Ethernet 10Gbit ports:
- -
- SFP ports:
- -
- SFP+ ports:
- -
- Switch:
- Qualcomm Atheros QCA8075
- VLAN:
- Yes
- Modem:
- -
- WLAN Hardware:
- Qualcomm Atheros IPQ4019, Qualcomm Atheros QCA9984
- WLAN 2.4GHz:
- b/g/n
- WLAN 5.0GHz:
- a/n/ac
- WLAN 6.0GHz:
- -
- WLAN 60.0GHz:
- -
- WLAN Comments:
- 2x2 in 2.4 Ghz & 5Ghz band; 4x4 in the third 5Ghz band
- WLAN driver:
- ath10k, ath10k-ct
- Detachable Antennas:
- -
- Bluetooth:
- 4.0
- miniPCI ports:
- -
- USB ports:
- 1x 3.0
- SATA ports:
- -
- Comments USB SATA ports:
- -
- Video ports:
- -
- Audio ports:
- -
- Phone ports:
- -
- Comments AV ports:
- -
- Serial:
- Yes
- Serial connection parameters:
- 115200 / 8N1
- Serial connection voltage:
- 3.3
- JTAG:
- ¿
- LED count:
- ¿
- Button count:
- ¿
- GPIOs:
- ¿
- Power Supply:
- 12 VDC, 2A via barrel
- Outdoor:
- No
- OpenVPN performance:
- -
- Wireguard performance:
- -
- Device Page:
- mr9000
- OWrt Forum Topic URL:
- https://forum.openwrt.org/t/support-for-the-linksys-mr9000/54377/
- Forum search:
- MR9000
- Git search:
- MR9000
- WikiDevi URL:
- https://wikidevi.wi-cat.ru/Linksys_MR9000
- WikiDevi ID:
- Linksys_MR9000
- OEM Device Homepage URL:
- https://support.linksys.com/kb/article/583-en/
- Firmware OEM Stock URL:
- https://support.linksys.com/kb/article/583-en/
- Firmware OpenWrt snapshot Install URL:
- https://downloads.openwrt.org/snapshots//targets/ipq40xx/generic/openwrt-ipq40xx-generic-linksys_mr9000-squashfs-factory.bin
- Firmware OpenWrt snapshot Upgrade URL:
- https://downloads.openwrt.org/snapshots//targets/ipq40xx/generic/openwrt-ipq40xx-generic-linksys_mr9000-squashfs-sysupgrade.bin
- Installation method(s):
- U-Boot TFTP + serial recovery, see devicepage, see git-commit
- Comment installation:
- Do NOT flash factory.bin image directly! Must first change kernel partition size via Serial Console -or- Intermediate Firmware. See Device Page section for more information.
- Recovery method(s):
- U-Boot TFTP + serial recovery, see devicepage, see git-commit

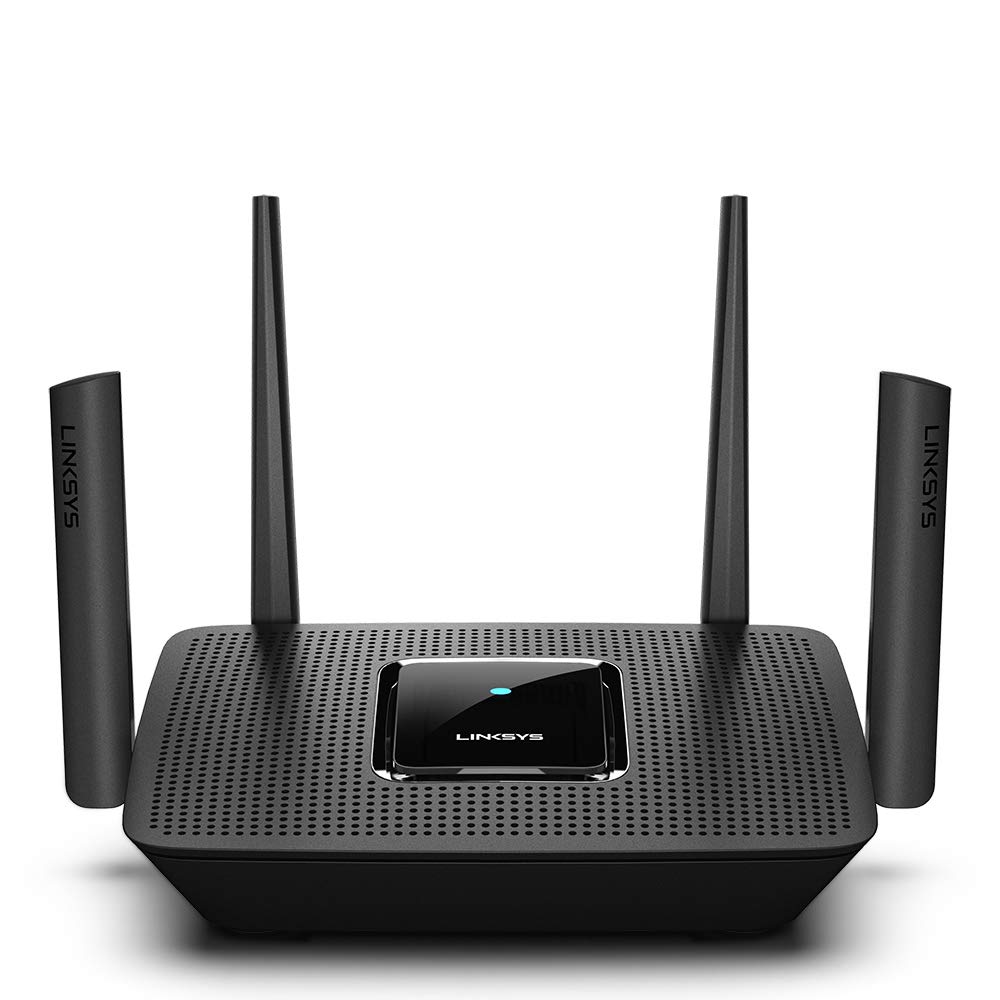

- Picture:
- Comments:
- Main snapshot and 25.12+ need a kernel partition variable change before installation. Read doc in Device Page section.
